External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 11.32 x 1.38 x 0.30 in |
External Dimensions (mm) | 288 x 35 x 8 mm |
DIN Rail Length (mm) | 287.5 mm |
Weight | 0.21 lbs |
2d Drawing PDF | Download 2D Drawing PDF |

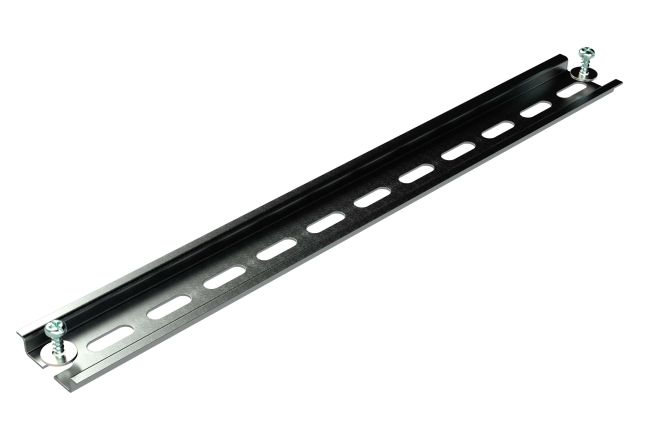

DIN Rail | Steel |
Washer | Stainless steel |
Assembly Screws | Steel |
3D Model | DR-26 STEP |
2D Drawing PDF | DR-26 PDF |
Din Rail Cross Reference Guide | Din Rail Reference Guide |
ML Series (Installed Along Length) | ML-92F |
