Part
AN-00K
External Dimensions 3.07 x 0.95 x 0.06 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $6.84
10 - 49 $5.81
50 - 99 $5.28
100 - 249 $4.86
250+ $4.71
Part
AN-00K
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

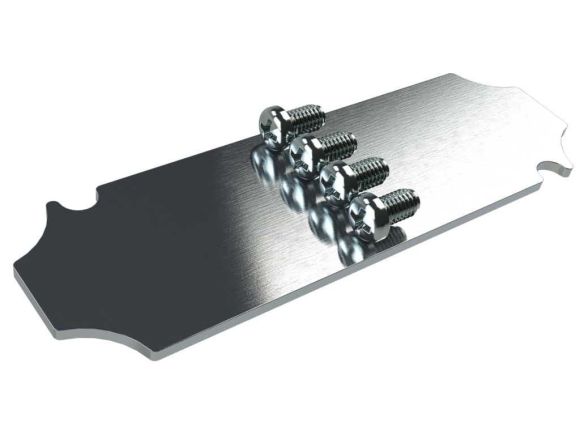

The AN-00K aluminum internal panel, with a natural finish and a thickness of 0.06", is designed specifically for AN-00P and AN-00F enclosures. The product comes complete with mounting screws for easy installation.
Specifications for
AN-00K
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
3.07 x 0.95 x 0.06 in
78 x 24 x 2 mm
Weight 0.03 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Panel Aluminum
Assembly Screws Steel
General
Series
Color Metallic
Country of Origin United States United States
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Panel and 4 screws
Screw Torque 6 in lbs

Downloads

Models & Drawings
3D Model AN-00K STEP
2D Drawing DWG AN-00K DWG
2D Drawing PDF AN-00K PDF

Enclosure Guide

Compatible Enclosures
AN Series Aluminum Enclosures AN-00F , AN-00P
