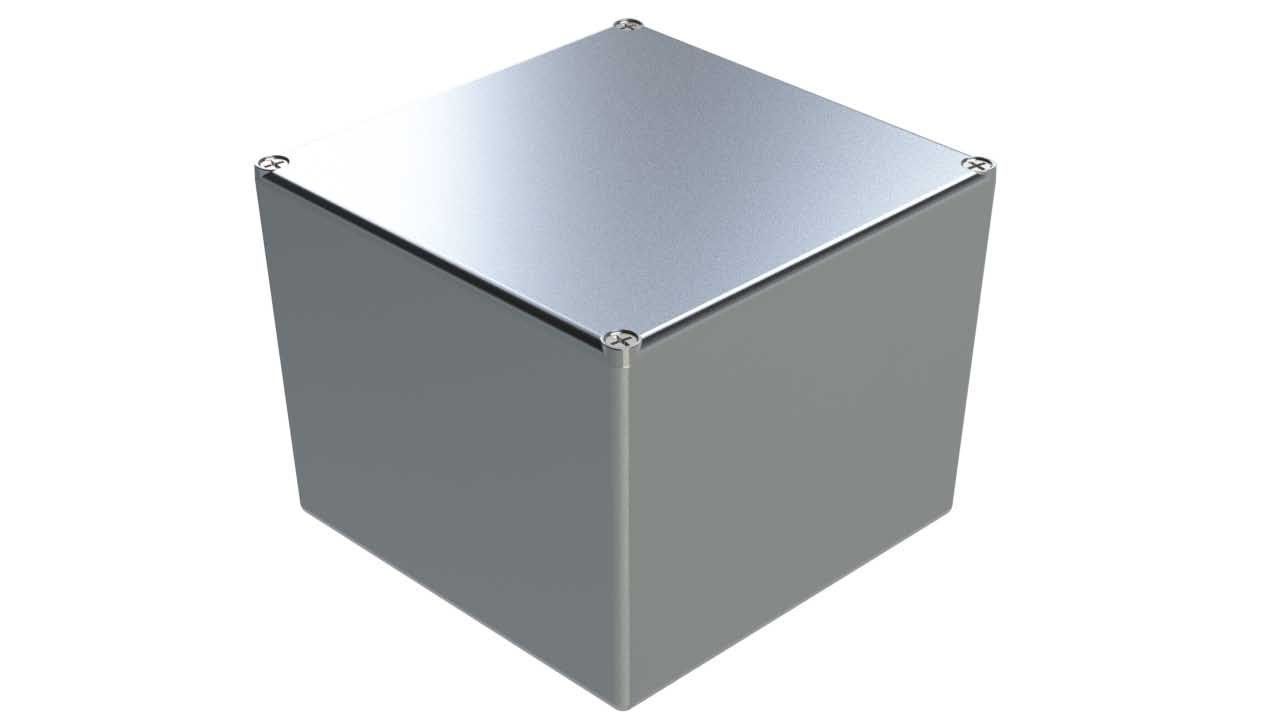

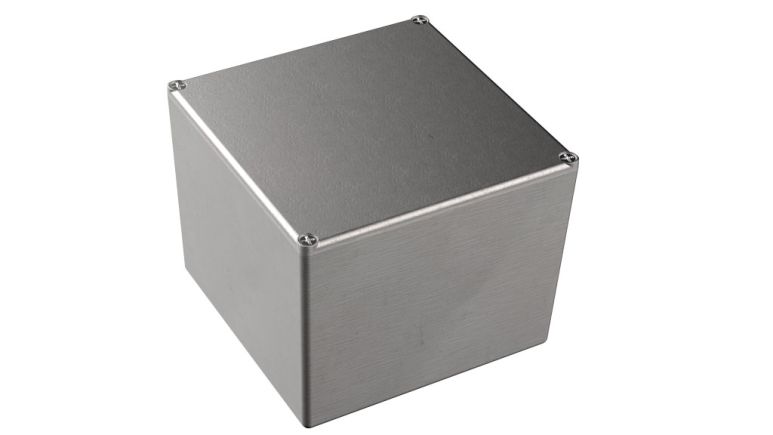

AL-75P Diecast Aluminum Enclosure

Deep diecast aluminum electronic enclosure for indoor applications

Part
AL-75P-01
External Dimensions 4.75 x 4.75 x 3.75 in
In stock
Color Natural
Qty Price / Unit
1 - 9 $20.98
10 - 49 $18.88
50 - 99 $16.04
100 - 249 $15.08
250 - 499 $14.77
More
Part
AL-75P-01
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The AL-75P is an extra-deep enclosure constructed from ADC-12 alloy diecast aluminum, providing a natural aluminum finish along with inherent EMI/RFI attenuation to enhance functionality in applications where protection from outside interference is important. Four thread forming cover screws are included, making assembly of the base and cover simple for potting box applications or other IoT uses.
Specifications for
AL-75P-01
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.75 x 4.75 x 3.75 in
121 x 121 x 95 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
3.80 x 3.80 x 3.58 in
97 x 97 x 91 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.09 in
Weight 0.91 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base Aluminum
Cover Aluminum
Assembly Screws Steel
Application
Application Indoor use
Waterproof No
General
Series
Color Natural
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, cover, and 4 screws
Screw Torque 12 in lbs
External Mounting Style None
Internal Mounting Option
No PCB mounting bosses

Downloads

Models & Drawings
3D Model AL-75P STEP
2D Drawing DWG AL-75P DWG
2D Drawing PDF AL-75P PDF
Other Files AL-75P Printing Template
Material Specs
Aluminum Material Specs Aluminum Specs

Accessory Guide

Optional Accessories
Adhesive PCB Mounting Standoffs MB-01-20
Frequently Bought Together

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
4.75 x 4.75 x 3.75 in
Taiwan, Province of China
2-18 weeks
Natural
Aluminum
Indoor use
N/A
N/A
  • None
  • No PCB mounting bosses
  • Degree of inherent EMI/RFI protection
  • Thread forming cover screws
4.62 x 4.62 x 2.25 in
United States
1 week
Black or Gray
ABS
Indoor use
N/A
N/A
  • None
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Two cover styles to choose from
  • Machine screws for on/off convenience
4.69 x 4.53 x 2.03 in
Taiwan, Province of China
2-16 weeks
Black
Aluminum
Outdoor use
N/A
N/A
  • Optional surface mounting kit (sold separately)
  • Internal slots for PCB installation
  • Degree of inherent EMI/RFI protection
  • Machine screws for on/off convenience
4.75 x 4.75 x 4.00 in
Taiwan, Province of China
2-16 weeks
Natural or Black
Aluminum
Outdoor use
4, 4X, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Optional surface mounting kit (sold separately)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Degree of inherent EMI/RFI protection
  • Natural finish or black powder coat
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
