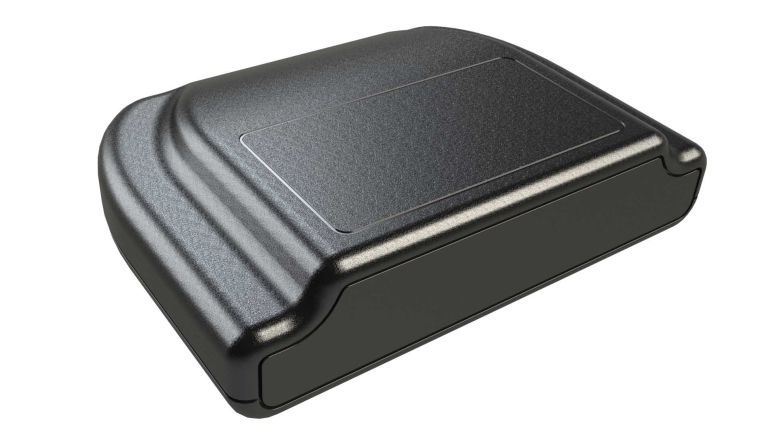

AG-54 Plastic Enclosure for Electronics

Indoor electronic enclosure made from flame-retardant ABS plastic

Part
AG-54
External Dimensions 4.00 x 5.50 x 1.38 in
In stock
Color
Unit Price $8.62
Part
AG-54
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
Constructed from flame-retardant ABS plastic, the AG-54 indoor electronic enclosure comes in two color choices: black and bone. Inside, you'll find 4 internal PCB mounting bosses in the base, and the end panel is removable, making modifications easy. Additionally, you have the flexibility of three cover options: flush/textured for a consistent look, recessed/smooth for membrane keypads or a molded-in LCD window for display screens. Although the AG-54 is often used for desktop applications, it performs effectively across a range of uses such as control sensors, audio/video equipment and more.
