WQ-80P Panel for WQ-80 Enclosures

Part
WQ-80P Panel
External Dimensions 21.73 x 18.00 x 0.06 in
In stock
Color
Unit Price $51.45
Part
WQ-80P Panel
Increase Down Increase Up
Product Overview

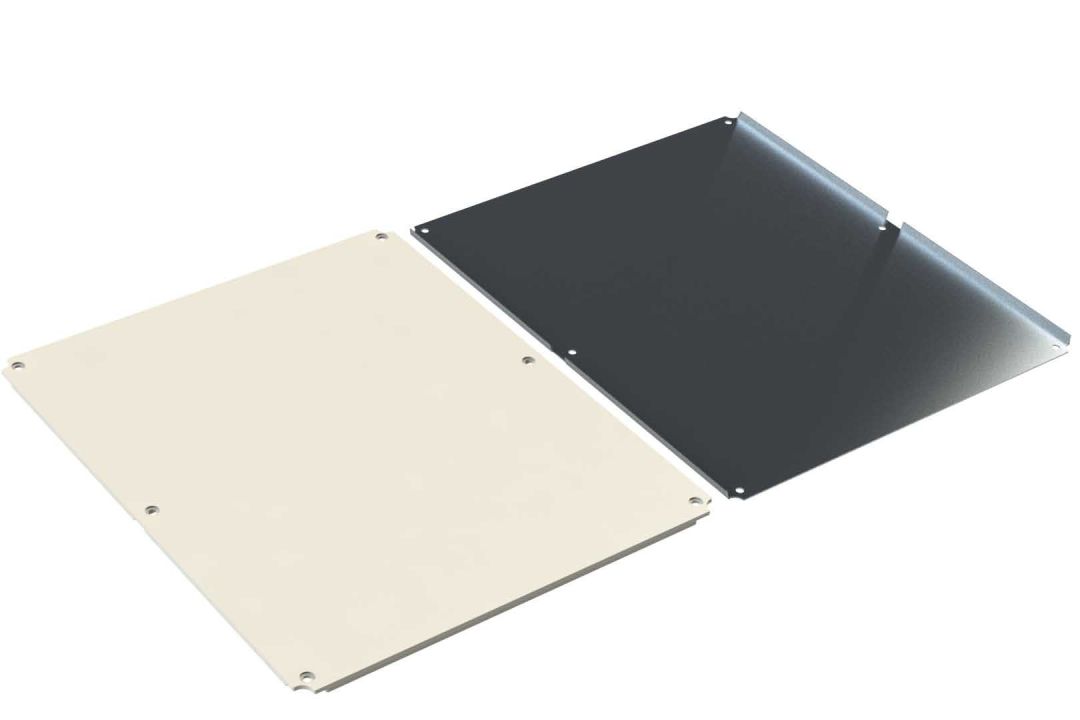

The internal mounting panel for WQ-80 enclosure is available in either ABS plastic or steel, and fastens to the mounting bosses inside the base of the enclosure. NOTE: the panel mounting screws are not included with the purchase of the panel, but instead, are provided with the purchase of the WQ-80 enclosure.
