Part
WQ-42P Panel
External Dimensions 9.14 x 3.34 x 0.06 in
In stock
Color
Unit Price $2.99
Part
WQ-42P Panel
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

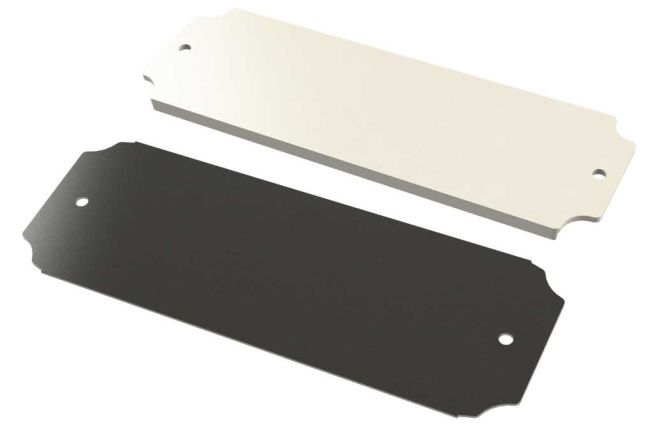

The internal mounting panel for WQ-42 enclosure is available in either ABS plastic or steel, and fastens to the mounting bosses inside the base of the enclosure. NOTE: the panel mounting screws are not included with the purchase of the panel, but instead, are provided with the purchase of the WQ-42 enclosure.
