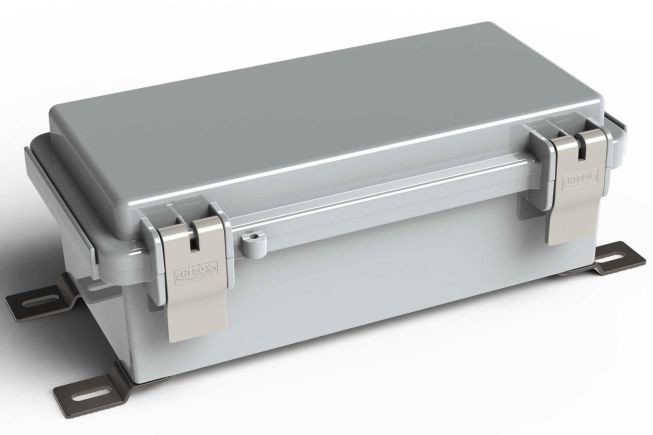

WH-06 Hinged NEMA Enclosure

7.87 x 3.93 x 2.75 in / 199.90 x 99.82 x 69.85 mm
View Details
In stock
Unit Price $12.36
Increase Down Increase Up
Customize It
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4, and 4X specifications
  • Outdoor versions are UL Listed to UL#E194432
  • Foam gasket makes enclosure ideal for use in a wide range of adverse conditions
  • All-plastic design including hinge pins and latches and molded-in padlocking feature
  • Includes stainless steel wall mounting hardware
  • 2 PCB mounting bosses in base
Rating Indoor Outdoor - Gray Cover Outdoor - Clear Cover
Part WH-06-01 WH-06-02 WH-06-03
Flame rating UL94-HB UL94-5VA UL94V-0
NEMA Rating 1, 2, 4, 4X 1, 2, 4, 4X 1, 2, 4, 4X
IP Rating IP65, IP66 IP65, IP66 IP65, IP66
*WH-06-01 (indoor version) flame rating = UL94-HB, *WH-06-02 (outdoor with gray cover version) flame rating = UL94-5VA, *WH-06-03 (outdoor with clear cover version) flame rating = UL94V-0
Application Color
Part # Indoor Outdoor Gray Gray with Clear Cover

Optional Accessories Include:

  • Internal mounting panel and screws - WH-06K
  • Pole mounting kit installed along width or length - PK-083
  • DIN Rail kit installed along length - DR-12
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WH-06 STEP
2D Drawing WH-06 DWG
2D Drawing WH-06 PDF
Material Spec WH Material Specs
