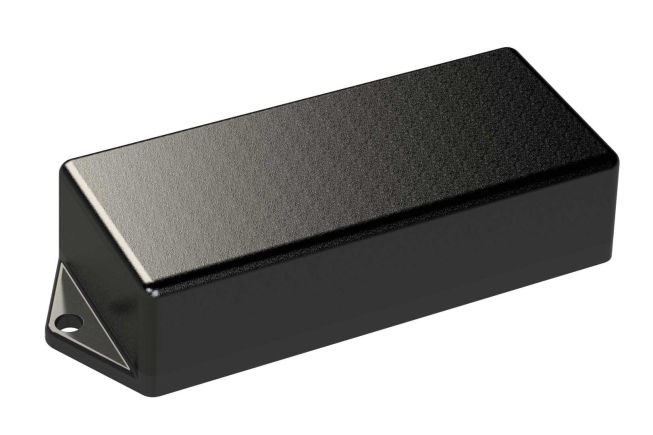

TF-1741TX Potting Box Enclosure
Plastic potting enclosure with mounting flanges
Product Overview
The TF-1741TX is a long potting enclosure molded from black flame-retardant ABS plastic with flanges located at the opening of the housing for added security when mounted. Designed for indoor use, the enclosure is best suited for relays or other timed electronic applications. For additional protection, a cover can be purchased separately.
Specifications for
TF-1741TX
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.00 x 1.75 x 1.00 in 102 x 44 x 25 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 3.80 x 1.58 x 0.87 in 97 x 40 x 22 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.07 in |
| Weight | 0.06 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Product Material | ABS |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Assembly Details
| External Mounting Style | Molded-on flange |
| Internal Mounting Option | No PCB mounting bosses |
Downloads
Models & Drawings
| 3D Model | TF-1741TX STEP |
| 2D Drawing DWG | TF-1741TX DWG |
| 2D Drawing PDF | TF-1741TX PDF |
| Other Files | TF-1741TX Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
