Part
SG-12P
External Dimensions 4.50 x 4.42 x 0.06 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $8.90
10 - 49 $7.83
50 - 99 $7.05
100 - 249 $6.35
250 - 499 $5.90
More
Part
SG-12P
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

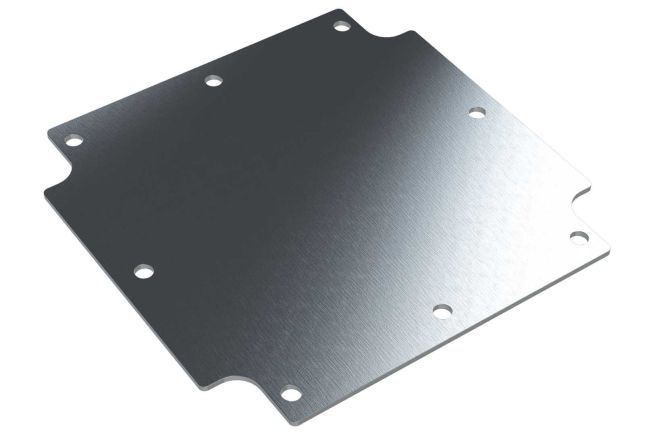

The SG-12P internal aluminum mounting panel, featuring a natural finish, is designed to fasten to the mounting bosses inside the base of the SG-12 and SG-19 enclosures. NOTE: the panel mounting screws are not included with the purchase of the panel, but instead, are provided with the purchase of the compatible enclosure.
Specifications for
SG-12P
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.50 x 4.42 x 0.06 in
114 x 112 x 2 mm
Weight 0.11 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Panel Aluminum
General
Series
Color Metallic
Country of Origin United States United States
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1-3 weeks
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Panel only (assembly screws included with purchase of enclosure)

Downloads

Models & Drawings
3D Model SG-12P STEP
2D Drawing DWG SG-12P DWG
2D Drawing PDF SG-12P PDF

Enclosure Guide

Compatible Enclosures
SG Series NEMA Enclosures SG-12 , SG-19
