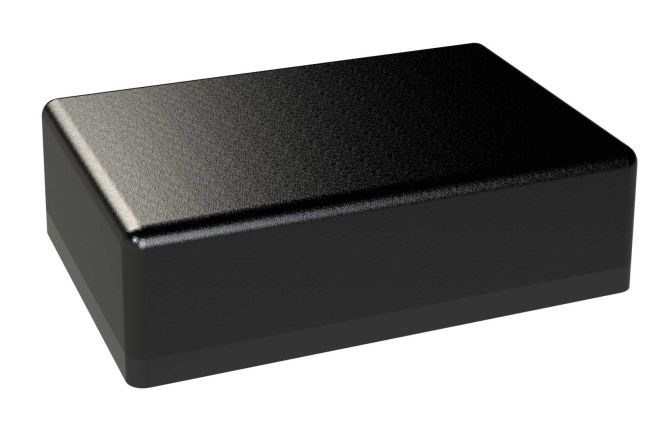

P-2309TX Potting Box Enclosure
Short potting case molded from ABS plastic for indoor IoT applications
Product Overview
The P-2309TX is a short potting enclosure molded from black flame-retardant ABS plastic. Designed for indoor use, the enclosure is best suited for desktop or IoT applications. For additional protection, a cover can be purchased separately.
Specifications for
P-2309TX
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
3.0 x 2.0 x 0.9 in
76 x 51 x 23 mm
|
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
2.8 x 1.8 x 0.8 in
72 x 46 x 21 mm
|
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.07 in |
| Weight | 0.04 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Product Material | ABS |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |
United States
|
| Manufacturer | Polycase |
Assembly Details
| External Mounting Style | None |
| Internal Mounting Option |
No PCB mounting bosses
|
Inventory for
P-2309TX
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 4156 |
| Ready To Ship in One Week | 18920 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 to 6 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | P-2309TX STEP |
| 2D Drawing DWG | P-2309TX DWG |
| 2D Drawing PDF | P-2309TX PDF |
| Other Files | P-2309TX Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Polycase Series |
