Product Overview
- This part is special marterial, Noryl, and has a 500 unit minimum order quantity
Specifications for
EK-50MBT-NOR
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.5 x 3.5 x 1.2 in 114 x 89 x 32 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 4.2 x 3.2 x 1.0 in 108 x 83 x 26 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.12 in |
| Weight | 0.24 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Application
| Indoor/Outdoor Use | Indoor use |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details

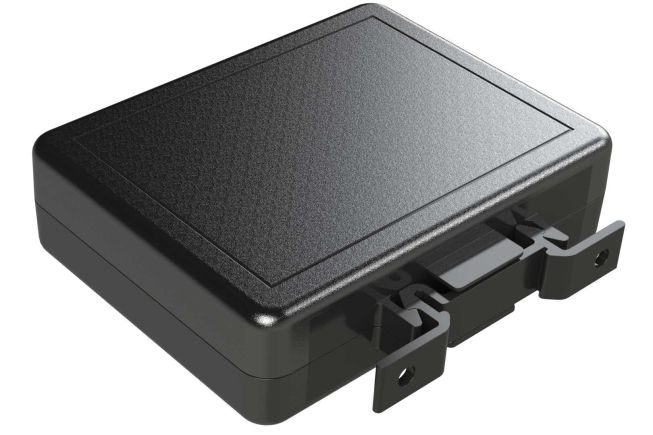

| External Mounting Style | Clip for DIN rail mounting |
| Internal Mounting Option | PCB mounting bosses in base |
Inventory for
EK-50MBT-NOR
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | EK-50 STEP |
| 2D Drawing DWG | EK-50 DWG |
| 2D Drawing PDF | EK-50 PDF |
| Other Files | EK-50 Printing Template |
