DR-60 DIN Rail Kit
Product Overview

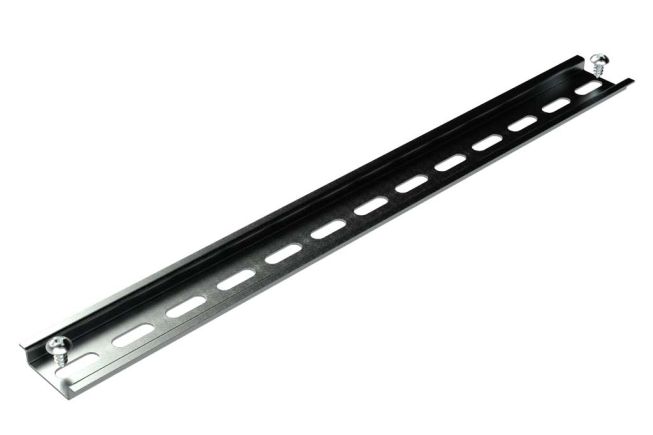

The DR-60 DIN rail kit is designed for mounting internal components securely along the width of the ZH-161407, ZQ-161407, along the length of the ZH-141206, ZQ-141206 or along the length or width of the ZH-141406 and ZQ-141406 enclosures. It comes complete with: (1) 35 mm x 7.5 mm x 325 mm din rail and (2) screws for mounting inside the base of the enclosure.
Specifications for
DR-60
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 12 x 1.3 x 0.3 in 325 x 35 x 8 mm |
| DIN Rail Length (mm) | 325 mm |
| Weight | 0.22 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| DIN Rail | Steel |
| Assembly Screws | Steel |
Inventory for
DR-60
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 24 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 days |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | DR-60 STEP |
| 2D Drawing DWG | DR-xx DWG |
| 2D Drawing PDF | DR-60 PDF |
Guides
| Din Rail Cross Reference Guide | Din Rail Reference Guide |
Enclosure Guide
Compatible Enclosures
| ZH Series (Installed Along Width) | ZH-161407 |
| ZH Series (Installed Along Length) | ZH-141206 , ZH-141204 |
| ZH Series (Installed Along Length or Width) | ZH-141406 |
| ZQ Series (Installed Along Width) | ZQ-161407 |
| ZQ Series (Installed Along Length) | ZQ-141206 , ZQ-141204 |
| ZQ Series (Installed Along Length or Width) | ZQ-141406 |
