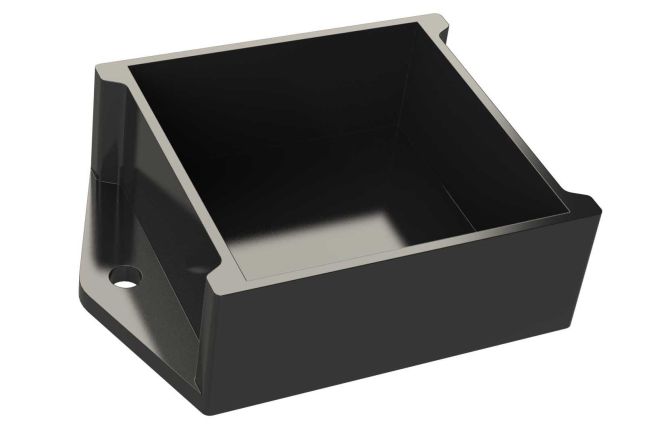

BF-020208 Potting Box Enclosure
Product Overview
- Black flame-retardant ABS plastic
- Mounting flanges standard
- Optional cover (C-0202) glues to enclosure (sold separately)
Specifications for
BF-020208
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.2 x 2.0 x 0.8 in 58 x 52 x 22 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 1.8 x 1.8 x 0.8 in 48 x 48 x 21 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.08 in |
| Weight | 0.04 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details
| External Mounting Style | Molded-on flange |
| Internal Mounting Option | No PCB mounting bosses |
Inventory for
BF-020208
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 2D Drawing PDF | BF-020208 PDF |
