Vent Plug

M20 waterproof vent plug for pressure equalization

Home
Vent Plug

Skip to the end of the images gallery

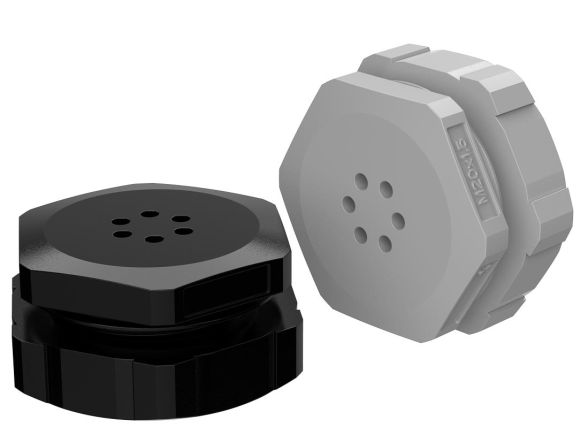

black and gray NEMA vent plugs for enclosures

Skip to the beginning of the images gallery

New

Venting Accessories

Part

Vent Plug

External Dimensions 1.0 x 1.0 x 4.2 in

In stock

Product Overview

The M20 Threaded vent plug facilitates the passage of air for pressure equalization, preventing pressure buildup inside electronic enclosures due to temperature cycling. Featuring a pressure compensating seal with an integral sealing ring, it ensures a liquid-tight seal, while an ultrasonically welded filter membrane prevents moisture and contamination. Designed to meet IP65, IP66, IP67, IP68 and NEMA 3R, 4, 4X specifications, this vent plug is made from gray or black nylon 6/6 and includes both the body and lock nut. It boasts a maximum airflow of 16.6 LPM/3.7cmÂ² at 13.5 psi.
