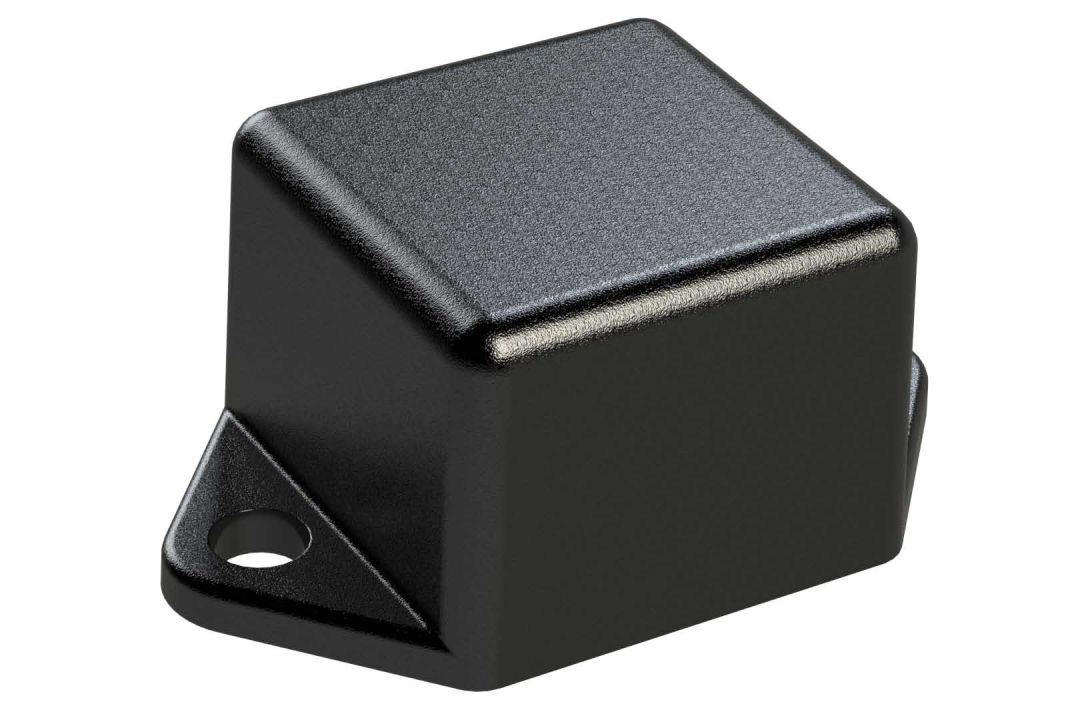

TF-1175TX Potting Box Enclosure
Small housing for potting electronics
Product Overview
TF-1175TX is a flanged potting case molded from flame-retardant black ABS plastic. Designed for indoor use, the enclosure is best suited for small electronic applications. For additional protection, a cover can be purchased separately.
Specifications for
TF-1175TX
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 1.0 x 1.0 x 0.7 in 25 x 25 x 19 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 0.8 x 0.8 x 0.6 in 22 x 22 x 18 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.06 in |
| Weight | 0.01 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Product Material | ABS |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details
| External Mounting Style | Molded-on flange |
| Internal Mounting Option | No PCB mounting bosses |
Inventory for
TF-1175TX
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 6861 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | TF-1175TX STEP |
| 2D Drawing DWG | TF-1175TX DWG |
| 2D Drawing PDF | TF-1175TX PDF |
| Other Files | TF-1175TX Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Polycase Products |
Accessory Guide
Optional Accessories
| Glue-on Cover | C-0101-N |
