ZX-1414K Internal Mounting Panels

Name: ZX-1414K
SKU: ZX-1414K

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ZH Series Accessories , ZQ Series Accessories

Part

ZX-1414K

External Dimensions 13.64 x 13.64 x 0.06 in

In stock

Product Overview

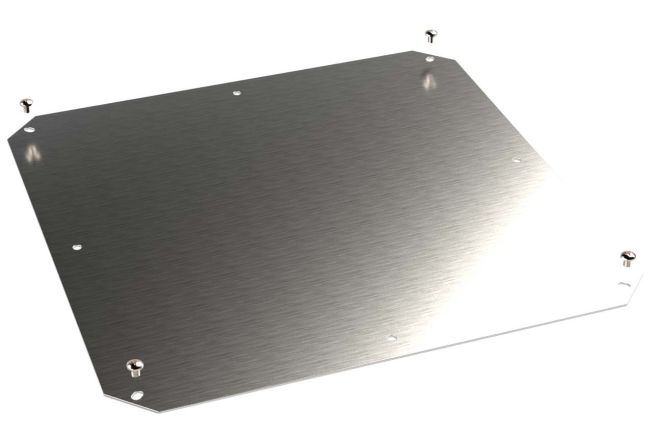

The ZX-1414K aluminum internal mounting panel is designed for ZH-141406 and ZQ-141406 enclosures, and has 4 different options available. The standard panel kit (Part # ZX-1414K-01) mounts to 4 standard mounting bosses in the bottom of the enclosure base. The hinged panel kit (Part # ZX-1414K-02) allows for assembly at any depth within the base while also providing the advantage of being able to swing open for easy access to internal components. The top of base or cover panel kit (Part # ZX-1414K-03) serves dual purposes for mounting in the cover or at the top of the base. The suspension panel kit (Part # ZX-1414K-04) allows the panel to be suspended at any depth within the base - unlike the hinged panel configuration, the suspension panel is designed to be stationary rather than swing open.
