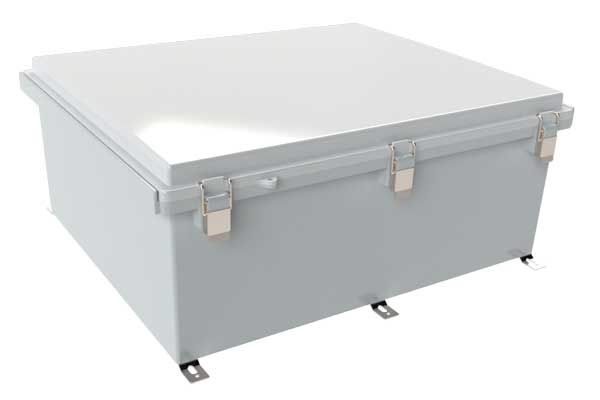

WQ-80 NEMA Hinged Enclosure

24.80 x 20.87 x 10.04 in / 630 x 530 x 255 mm
View Details
In stock
Color
Unit Price $404.55
Part
WQ-80
Increase Down Increase Up
  • UL & cUL Listed (file no. E194432)
  • NEMA 4X rated
  • Meets IP65 & IP66 specifications based on UL Listing
  • IP67 rated
  • Stainless steel latches
  • Fiberglass reinforced polycarbonate base, polycarbonate cover
  • Continuous gasket
  • Designed for outdoor applications
  • PCB mounting boss screws included for bosses with brass inserts
  • Mounting feet included
  • We do not offer customization services on this enclosure
  • This item is non-returnable
  • WQ-80-03 (clear cover) is DISCONTINUED please see WQ-77-03 for the next closest size with a clear cover
RatingSpecification
Flame ratingUL94 V-0
NEMA Rating4X
IP EquivalentIP65, IP66, IP67
Color
Part #Gray
WQ-80-02

Optional Accessories Include:

  • Internal mounting panel - WQ-80P
  • Pole mounting kit installed along width - PK-202
  • Pole mounting kit installed along length - PK-241
  • DIN Rail kit installed along width - DR-45
  • DIN Rail kit installed along length - DR-55
  • Internal PCB mounting boss screws (for plastic bosses only)- SCREWS-032-50
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WQ-80 STEP
2D Drawing WQ-80 DWG
2D Drawing WQ-80 PDF
