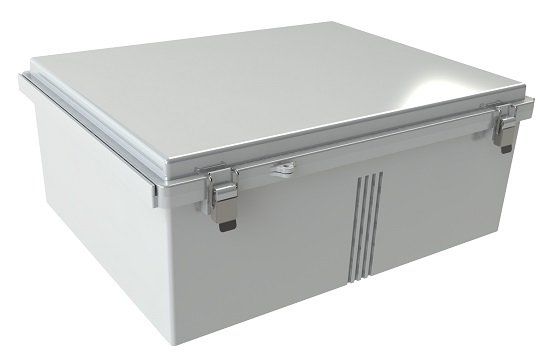

WQ-76 NEMA Hinged Enclosure

19.69 x 15.75 x 7.87 in / 500 x 400 x 200 mm
View Details
In stock
Color
Unit Price $206.48
Part
WQ-76
Increase Down Increase Up
  • UL & cUL Listed (file no. E194432)
  • NEMA 4X rated
  • Meets IP65 & IP66 specifications based on UL Listing
  • IP67 rated
  • Stainless steel latches
  • Fiberglass reinforced polycarbonate base, polycarbonate cover
  • Continuous gasket
  • Designed for outdoor applications
  • PCB mounting boss screws included for bosses with brass inserts
  • We do not offer customization services on this enclosure
  • This item is non-returnable
RatingSpecification
Flame ratingUL94 V-0
NEMA Rating4X
IP EquivalentIP65, IP66, IP67
Color
Part #GrayGray with Clear Cover
WQ-76-02
WQ-76-03

Optional Accessories Include:

  • Internal mounting panel - WQ-76P
  • Flange kit for surface mounting - WQ-91
  • Pole mounting kit installed along width - PK-161
  • Pole mounting kit installed along length - PK-202
  • DIN Rail kit installed along width - DR-36
  • DIN Rail kit installed along length - DR-45
  • Internal PCB mounting boss screws (for plastic bosses only)- SCREWS-032-50
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WQ-76 STEP
2D Drawing WQ-76 DWG
2D Drawing WQ-76 PDF
Material Spec WQ Material Specs
