Product Overview

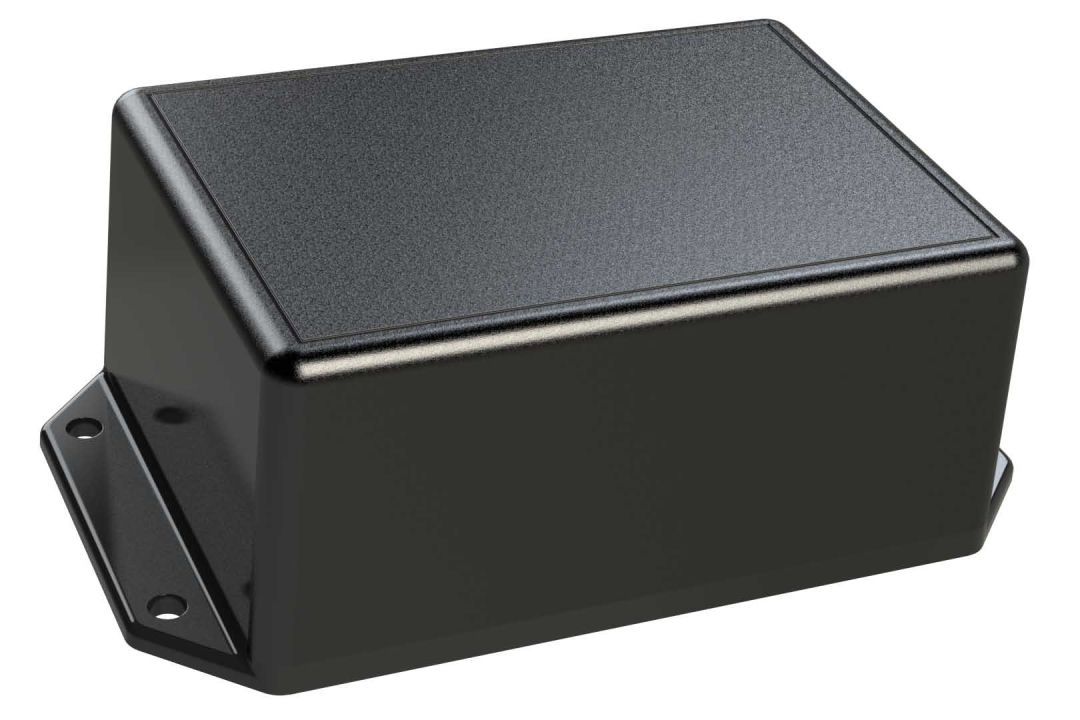

The TF-3420TX is a small potting case molded from black flame-retardant ABS plastic with flanges located at the opening of the housing for added security when mounted. Designed for indoor use, the enclosure is best suited for desktop or other IoT electronic applications. For additional protection, a cover can be purchased separately.
Specifications for
TF-3420TX
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.38 x 3.13 x 2.00 in |
| External Dimensions (mm) | 111 x 80 x 51 mm |
| Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.17 x 2.91 x 1.90 in |
| Internal Dimensions (mm) | 106 x 74 x 48 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.07 in |
| Weight | 0.19 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Product Material | ABS |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | TX Series |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details
| External Mounting Style | Molded-on flange |
| Internal Mounting Option | No PCB mounting bosses |
Downloads
Models & Drawings
| 3D Model | TF-3420TX STEP |
| 2D Drawing DWG | TF-3420TX DWG |
| 2D Drawing PDF | TF-3420TX PDF |
| Other Files | TF-3420TX Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
