Product Overview

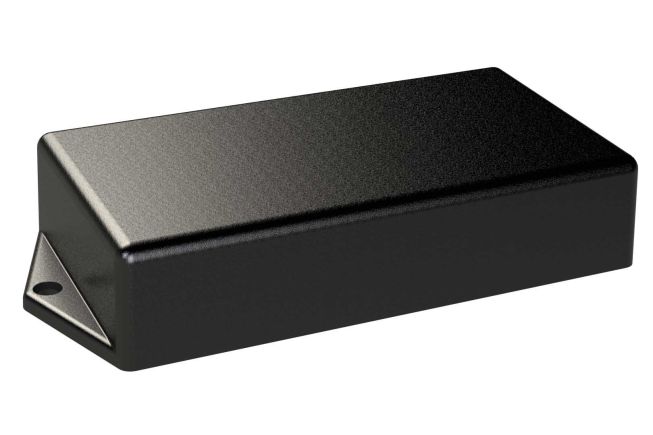

The TF-2409TX is a low-profile potting enclosure molded from black flame-retardant ABS plastic with flanges. Designed for indoor use, the enclosure helps to protect electronic components. For additional protection, a glue-on cover can be purchased separately.
Specifications for
TF-2409TX
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.00 x 2.13 x 0.90 in |
| External Dimensions (mm) | 102 x 54 x 23 mm |
| Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 3.98 x 2.05 x 0.76 in |
| Internal Dimensions (mm) | 101 x 52 x 19 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.07 in |
| Weight | 0.06 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Product Material | ABS |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | TX Series |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
Assembly Details
| External Mounting Style | Molded-on flange |
| Internal Mounting Option | No PCB mounting bosses |
Downloads
Models & Drawings
| 3D Model | TF-2409TX STEP |
| 2D Drawing DWG | TF-2409TX DWG |
| 2D Drawing PDF | TF-2409TX PDF |
| Other Files | TF-2409TX Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
