ZH/ZQ PCB Screws for Brass Inserts (bag of 100 screws)

Name: ZH/ZQ PCB Screws (Brass Inserts)
SKU: SCREWS-011-100
Price: 4.22 USD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PCB Mounting Screws , ZH Series Accessories , ZQ Series Accessories

Part

SCREWS-011-100

External Dimensions 0.38 x 0.37 x 0.37 in

In stock

Product Overview

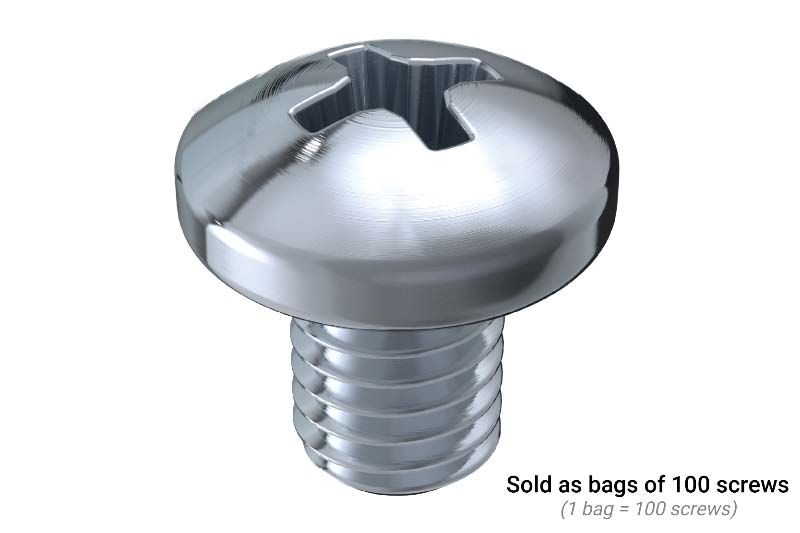

Sold in bags of 100 screws (1 bag = 100 screws), the #10-32 X .25" machine screws (SCREWS-011-100) are designed for mounting bosses with brass inserts inside ZH Series and ZQ Series enclosures. These screws are made of steel with a zinc-clear chromate finish, ensuring durability and corrosion resistance. For screws used in plastic mounting bosses without inserts, the recommended option is SCREWS-013-100.

Specifications for

SCREWS-011-100

Dimensions

External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.	0.38 x 0.37 x 0.37 in
External Dimensions (mm)	10 x 9 x 9 mm
Weight	0.42 lbs
Screw Size	#10-32 x .25"

Material Details

Product Material

Steel

General

Series	PCB Mounting Screws ZH Series Accessories ZQ Series Accessories
Color	Metallic
Country of Origin	China
Screw Type	Machine
Screw Use	Circuit board assembly

Assembly Details

Assembly Includes

1 bag contains 100 screws

Enclosure Guide

Compatible Enclosures

ZH Series NEMA Hinged Enclosures (brass insert bosses)	ZH Series
ZQ Series NEMA Enclosures (brass insert bosses)	ZQ Series
