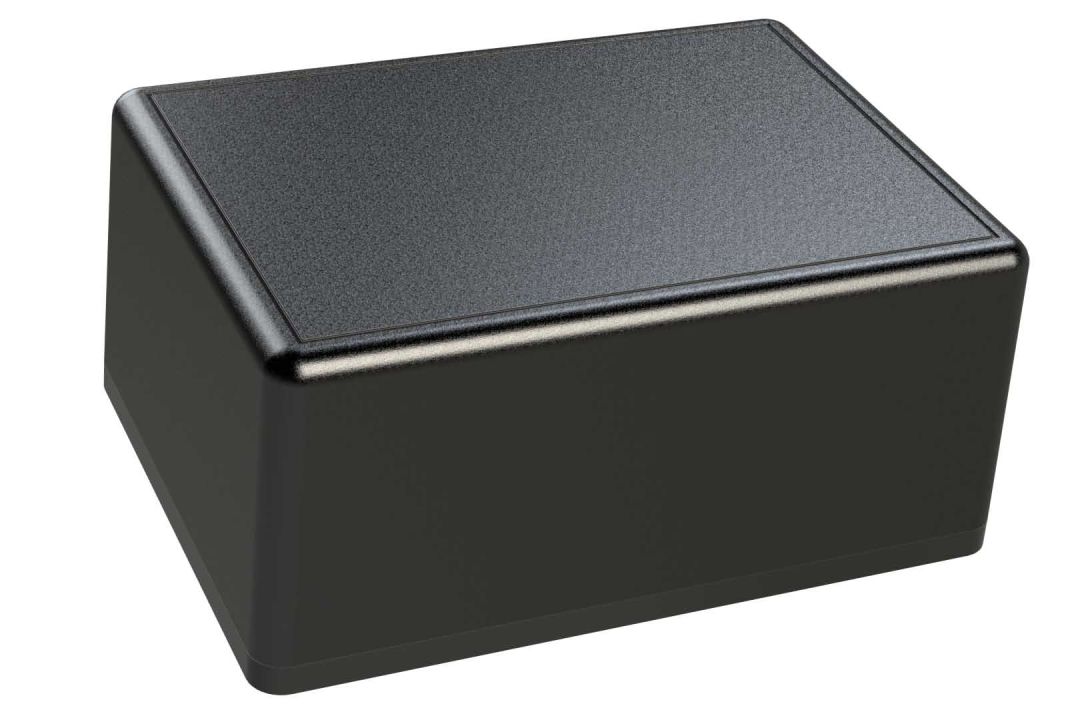

The P-3420TX is a potting case molded from black flame-retardant ABS plastic. Designed for indoor use, the enclosure is best suited for potting applications. For additional protection, a glue-on cover can be purchased separately.
External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.38 x 3.13 x 2.00 in |
External Dimensions (mm) | 111 x 80 x 51 mm |
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.17 x 2.91 x 1.90 in |
Internal Dimensions (mm) | 106 x 74 x 48 mm |
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.11 in |
Weight | 0.18 lbs |
2d Drawing PDF | Download 2D Drawing PDF |
Download Material Specs | Download Material Specs |
Product Material | ABS |
Application | Indoor use |
3D Model | P-3420TX STEP |
2D Drawing DWG | P-3420TX DWG |
2D Drawing PDF | P-3420TX PDF |
Other Files | P-3420TX Printing Template |
Material Specs | ABS Plastic Specs |
