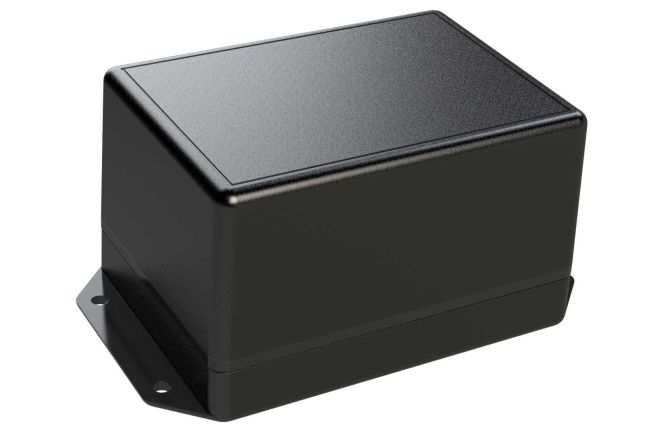

External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.38 x 3.13 x 2.70 in |
External Dimensions (mm) | 111 x 80 x 69 mm |
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.26 x 3.01 x 2.50 in |
Internal Dimensions (mm) | 108 x 76 x 64 mm |
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.11 in |
Weight | 0.31 lbs |
2d Drawing PDF | Download 2D Drawing PDF |
Download Material Specs | Download Material Specs |
Base | ABS |
Cover | ABS |
Application | Indoor use |
UV Resistant | No |
Waterproof | No |
3D Model | ID-3420F STEP |
2D Drawing DWG | ID-3420F DWG |
2D Drawing PDF | ID-3420F PDF |
Other Files | ID-3420F Printing Template |
Material Specs | ABS Plastic Specs |
PCB Mounting Boss Screws | SCREWS-MBR-100 |
Adhesive PCB Mounting Standoffs | MB-01-20 |
