Product Overview

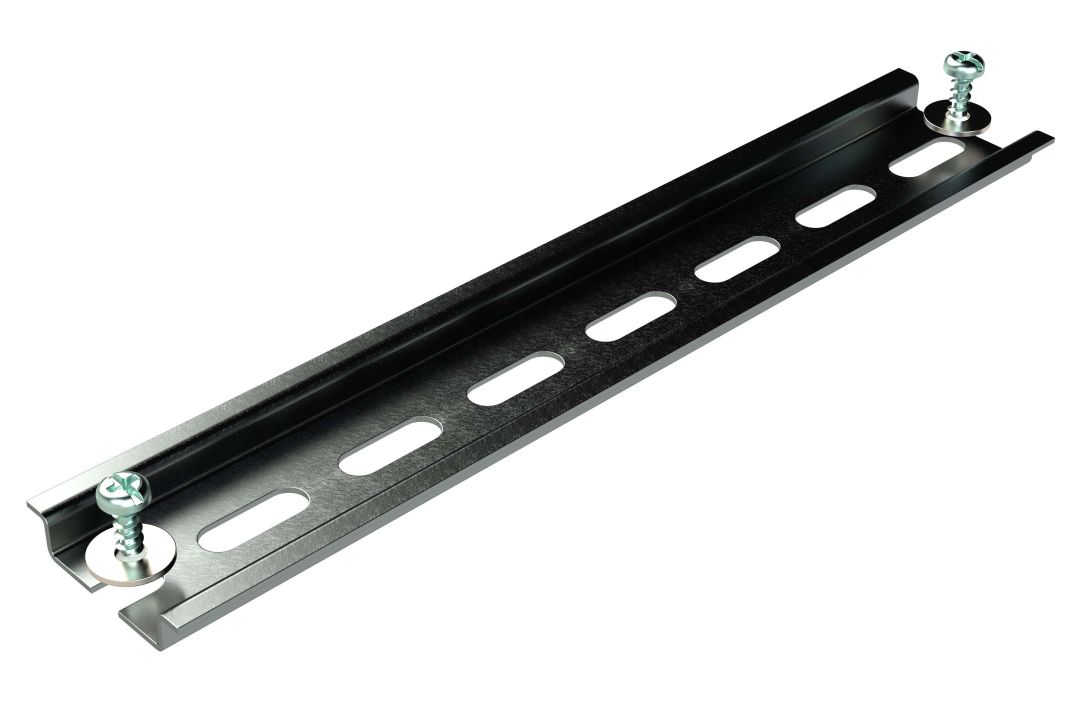

The DR-46 DIN rail kit is designed for mounting internal components securely along the length of the SG-22, or along the short width of the SG-16, SG-20 enclosures. It comes complete with: (1) 35 mm x 7.5 mm x 187.5 mm din rail, (2) washers and (2) screws for mounting inside base of enclosure.
Specifications for
DR-46
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 7.38 x 1.38 x 0.30 in |
| External Dimensions (mm) | 187 x 35 x 8 mm |
| DIN Rail Length (mm) | 187.5 mm |
| Weight | 0.14 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| DIN Rail | Steel |
| Washer | Stainless steel |
| Assembly Screws | Steel |
Downloads
Models & Drawings
| 3D Model | DR-46 STEP |
| 2D Drawing PDF | DR-46 PDF |
Guides
| Din Rail Cross Reference Guide | Din Rail Guide |
