Product Overview

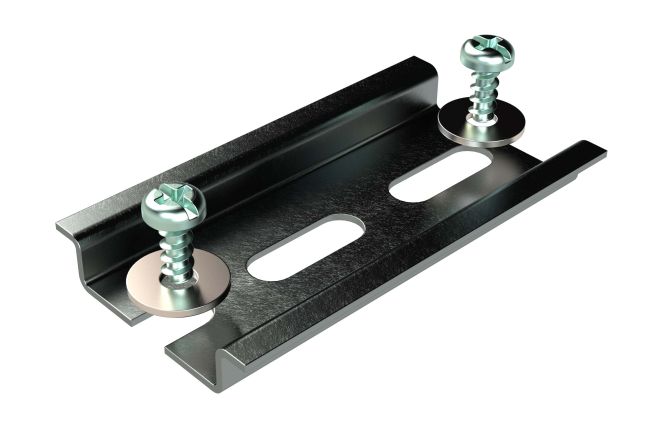

The DR-06 DIN rail kit is designed for mounting internal components securely along the width of the SG-11, SG-18, SG-21 enclosures and along the length of the SG-10, SG-17, SK-12 and SK-25 enclosures. It comes complete with: (1) din rail (2) washers and (2) screws for mounting inside base of the enclosure.
Specifications for
DR-06
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 2.46 x 1.38 x 0.30 in |
| External Dimensions (mm) | 62 x 35 x 8 mm |
| DIN Rail Length (mm) | 62.5 mm |
| Weight | 0.06 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| DIN Rail | Steel |
| Washer | Stainless steel |
| Assembly Screws | Steel |
Downloads
Models & Drawings
| 3D Model | DR-06 STEP |
| 2D Drawing PDF | DR-06 PDF |
Guides
| Din Rail Cross Reference Guide | Din Rail Guide |
