Options & Pricing
Color
Max PCB
Flanges



QuantityPrice
1 - 9$93.51
10 - 49$78.09
50 - 99$70.20
100 - 249$62.41
250 - 499$58.79

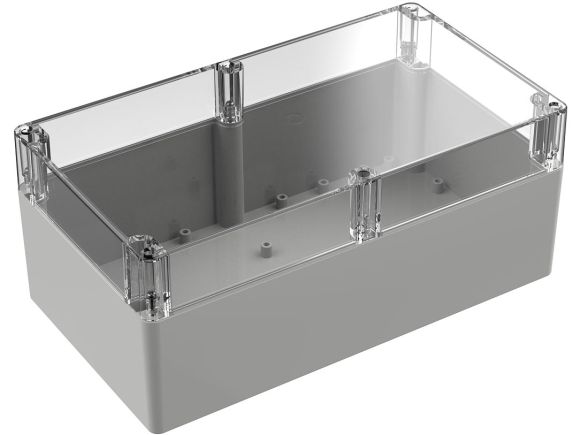

WC-44 WC Series Polycarbonate Enclosure with Clear Cover - NEMA Rated for outdoor use

Downloads

Downloads

The WC-44 offers

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  • Captive, stainless steel screws thread into brass inserts for cover on/cover off applications
  • Internal holes molded into 4 corners, outside of the sealed cavity, can be used to mount the enclosure
  • UL Listed to UL508-4x specifications (File E194432)
  • Comes standard with plastic PCB mounting bosses
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 6 enclosure screws

Internal mounting panel WX-50 available as an accessoryWX-14

Click here to purchase NEMA 4X cable glandsCG-11

Dimensions (L x W x H) (in / mm) (lbs.)
14.12 x 7.84 x 5.96 in. / 358.65 x 199.14 x 151.38 mm /3.06 lbs.



   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-44*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
