| STANDARD COLOR | WATERPROOF | |||
|---|---|---|---|---|
| Part Number | Material | Flame Rating | Light Gray w/ Clear Cover | Gasket |
| WC-40*1508 | Flame Retardant Polycarbonate | UL94-HB |  |
|

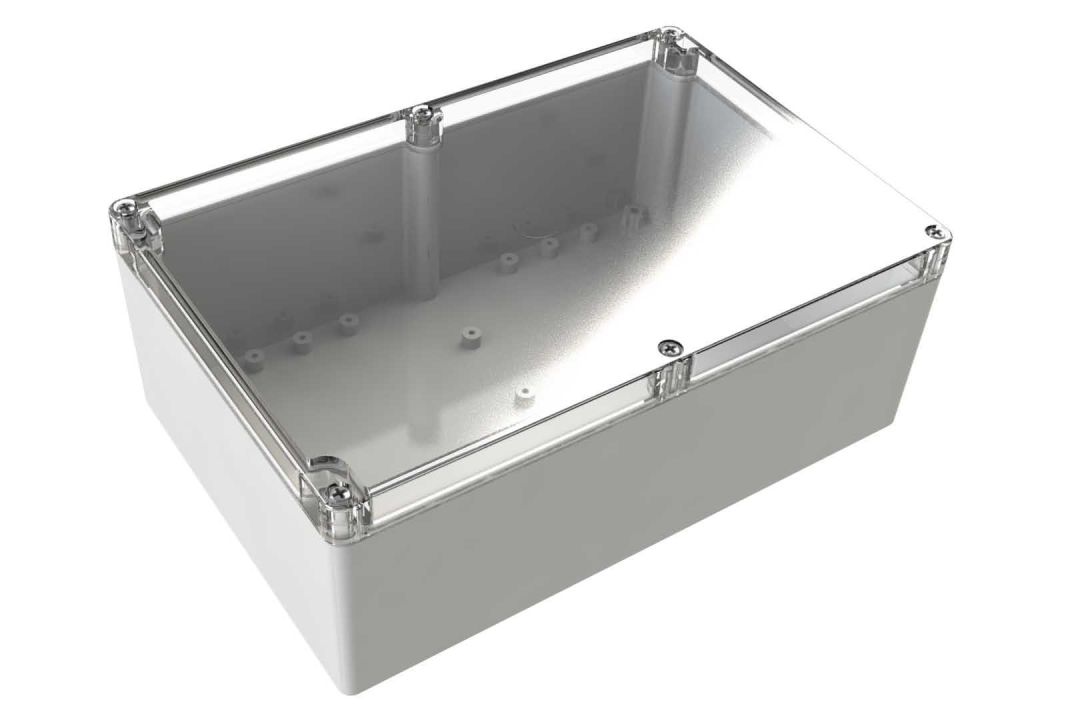

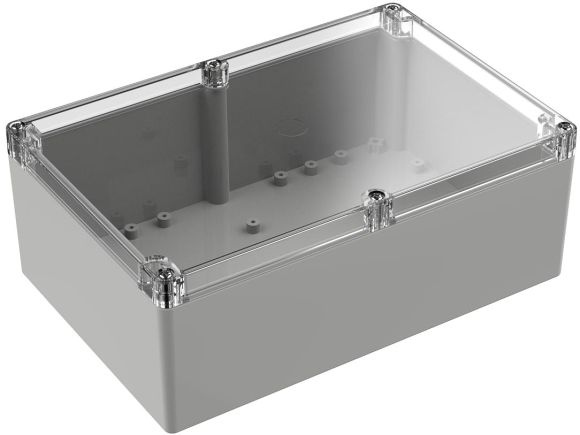

WC-40 WC Series Polycarbonate Enclosure with Clear Cover - NEMA Rated for outdoor use
The WC-40 offers
- Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
- Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
- Internal holes molded into 4 corners, outside of the sealed cavity, can be used to mount the enclosure
- To mount enclosure without removing the cover, optional flange kits can be purchased
- Captive, stainless steel screws thread into brass inserts for cover on/cover off applications
- UL Listed to UL508-4x specifications (File E194432)
- Comes standard with both PCB mounting bosses with threaded brass inserts and shorter, plastic bosses
- Durable, impact-resistant UV Stabilized Polycarbonate material
- Assembly includes base, gasket, cover, and 6 enclosure screws
- To purchase the optional mounting flange kits, click here
Internal mounting panel WX-42 available as an accessory
Click here to purchase NEMA 4X cable glands
9.45 x 6.30 x 3.60 in. / 240.03 x 160.02 x 91.44 mm /1.37 lbs.
