| STANDARD COLOR | WATERPROOF | |||
|---|---|---|---|---|
| Part Number | Material | Flame Rating | Dark Gray | Gasket |
| WA-20*16 | Flame Retardant ABS | UL94-HB |  |
|

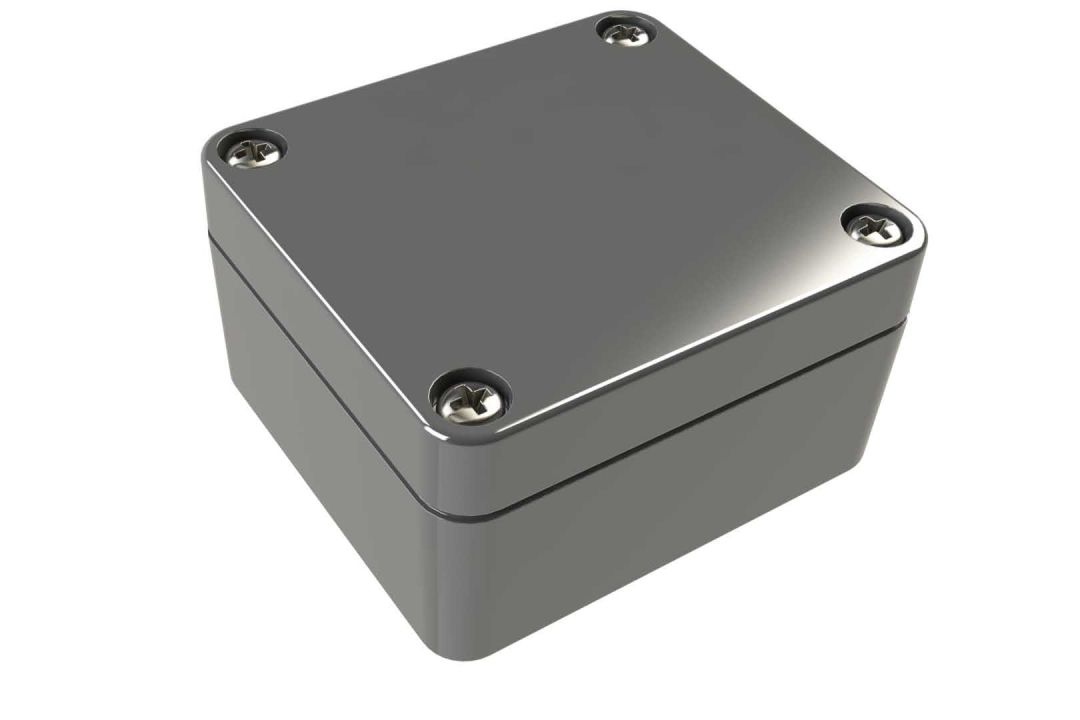

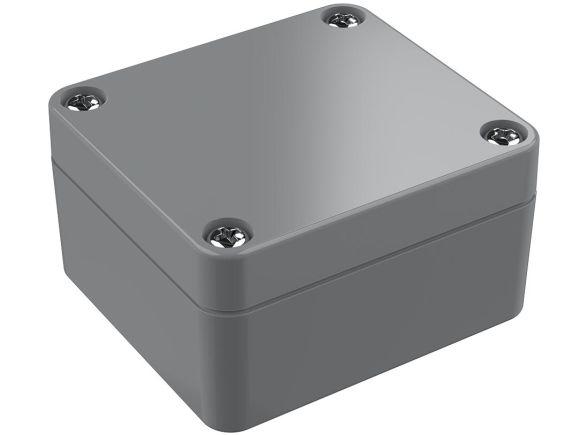

WA-20 WA Series NEMA Rated ABS Electronic Enclosure - for indoor use only
The WA-20 offers
- Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
- Silicone rubber gasket for protection from adverse indoor conditions
- Captive, stainless steel screws thread into brass inserts for cover on/cover off applications
- UL Listed to UL508-4x specifications (File E194432)
- Comes standard with plastic PCB mounting bosses
- Molded in dark gray flame retardant ABS plastic
- Assembly includes base, gasket, cover, and 4 enclosure screws
- For this case with mounting flanges, click here
Internal mounting panel WX-10 available as an accessory
Click here to purchase NEMA 4X cable glands
2.28 x 2.52 x 1.38 in. / 57.91 x 64.01 x 35.05 mm /0.16 lbs.
