Options & Pricing
Color
Max PCB
Cover Style
Flanges
PCB Mounting Bosses
Battery Compartment
End Panel
QuantityPrice
1 - 9$6.39
10 - 49$5.59
50 - 99$5.04
100 - 249$4.42
250 - 499$3.91
500 - 999$3.45
1000+$3.14

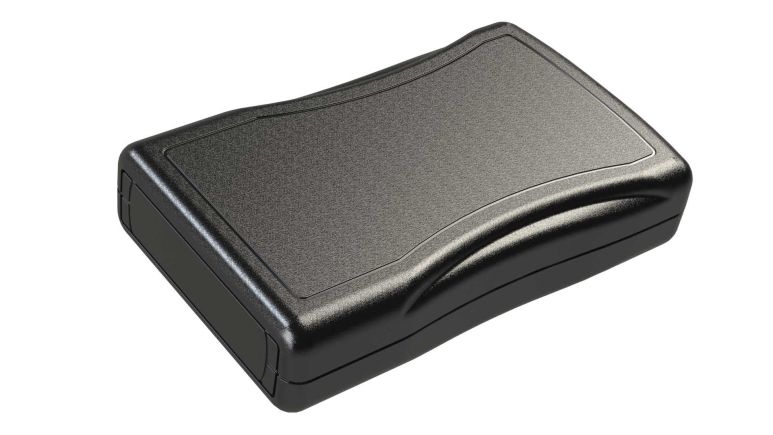

VM-24 VM Series Hand Held Plastic Electronic Enclosure

The VM-24 offers

  • Slim design for handheld applications
  • Optional recessed/smooth area on cover for graphic overlays or membrane keypads
  • Optional flush/textured cover for consistent surface
  • End panel can be standard ABS or infrared Polycarbonate
  • Silicone rubber boots available as accessories
  • Cover screws directly into base
  • Available in black
  • Available without battery compartment: assembly includes base, cover, end panel, and 4 enclosure screws
  • Optional two AA battery compartment includes base, cover, end panel, battery door, nickle-steel battery contacts*, and 4 enclosure screws
  • Optional 9V Battery compartment includes gray foam for holding battery secure and 9V battery strap

*Batteries not included

To purchase the silicone rubber boot for this enclosure, click here.

Dimensions (L x W x H) (in / mm) (lbs.)
4.63 x 2.84 x 1.00 in. / 117.60 x 72.14 x 25.40 mm /0.20 lbs.
   STANDARD COLORSCOVER STYLESREMOVABLE END PANELBATTERY COMPARTMENT *
Part Number Material Flame Rating Black Flush / Textured Recessed / Smooth ABS Infrared Polycarbonate None 1 9V^ 2 AA^^
VM-24MMTT Flame Retardant ABS UL94-5VA Yes Yes   Yes   Yes
VM-24MMRT Flame Retardant ABS UL94-5VA Yes   Yes Yes   Yes
VM-24M19VMTT Flame Retardant ABS UL94-5VA Yes Yes   Yes     Yes
VM-24M19VMRT Flame Retardant ABS UL94-5VA Yes   Yes Yes     Yes
VM-24M2AAMTT Flame Retardant ABS UL94-5VA Yes Yes   Yes       Yes
VM-24M2AAMRT Flame Retardant ABS UL94-5VA Yes   Yes Yes       Yes
VM-24MMTS Flame Retardant ABS UL94V-2 Yes Yes     Yes Yes
VM-24MMRS Flame Retardant ABS UL94V-2 Yes   Yes   Yes Yes
VM-24M19VMTS Flame Retardant ABS UL94V-2 Yes Yes     Yes   Yes
VM-24M19VMRS Flame Retardant ABS UL94V-2 Yes   Yes   Yes   Yes
VM-24M2AAMTS Flame Retardant ABS UL94V-2 Yes Yes     Yes     Yes
VM-24M2AAMRS Flame Retardant ABS UL94V-2 Yes   Yes   Yes     Yes

* Batteries not included
^ 9V style includes gray foam to secure battery and a battery strap
^^ AA battery contacts are nickel-plated steel
