Product Overview

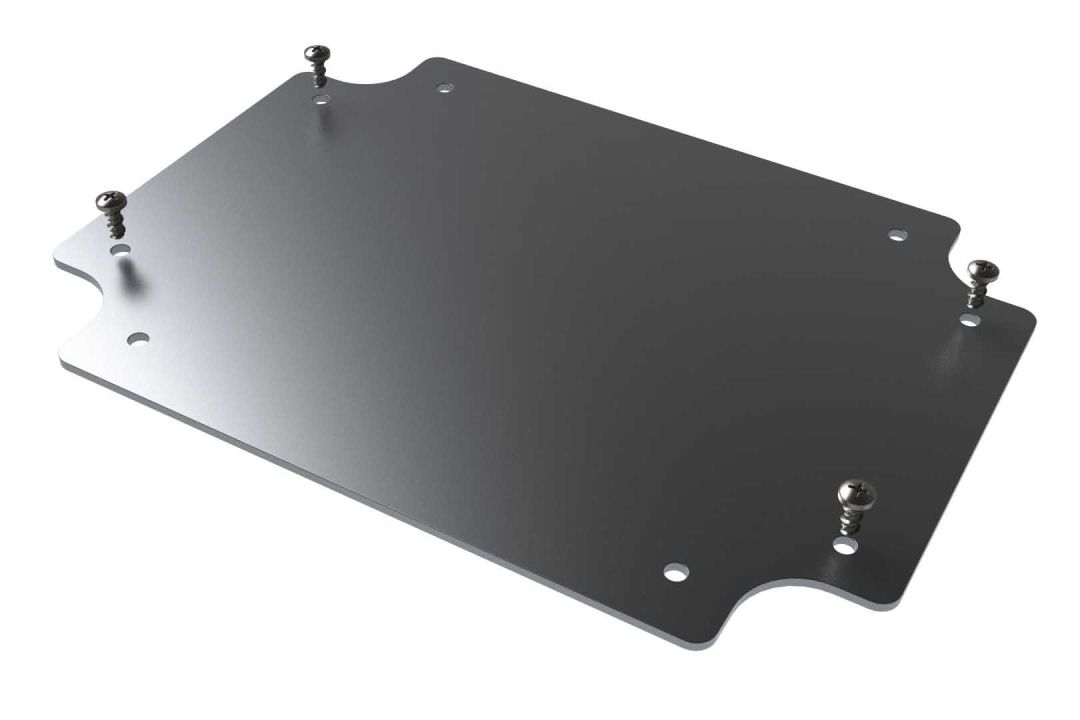

The ML-46K internal aluminum mounting panel, featuring a natural finish, comes with mounting screws and is designed to assemble to the mounting bosses in the base of the ML-46F enclosure.
Specifications for
ML-46K
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 5.69 x 4.20 x 0.06 in |
| External Dimensions (mm) | 145 x 107 x 2 mm |
| Weight | 0.13 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Panel | Aluminum |
| Assembly Screws | Steel |
General
| Series | ML Series Accessories |
| Color | Metallic |
| Country of Origin |  United States |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Panel and 4 screws |
Downloads
Models & Drawings
| 3D Model | ML-46K STEP |
| 2D Drawing DWG | ML-46K DWG |
| 2D Drawing PDF | ML-46K PDF |
Enclosure Guide
Compatible Enclosures
| ML Series NEMA Enclosures | ML-46F |
